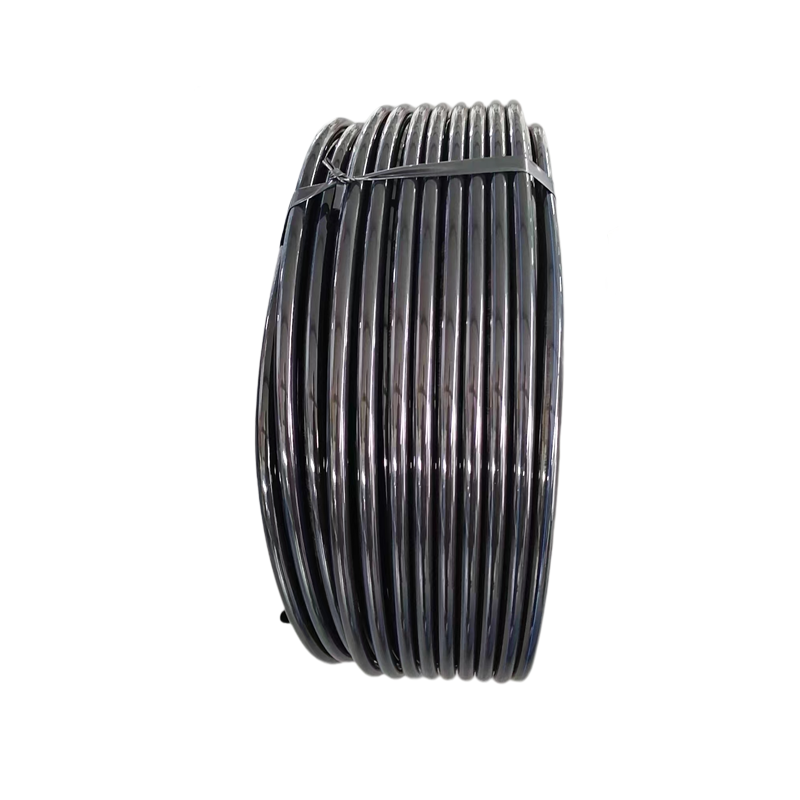

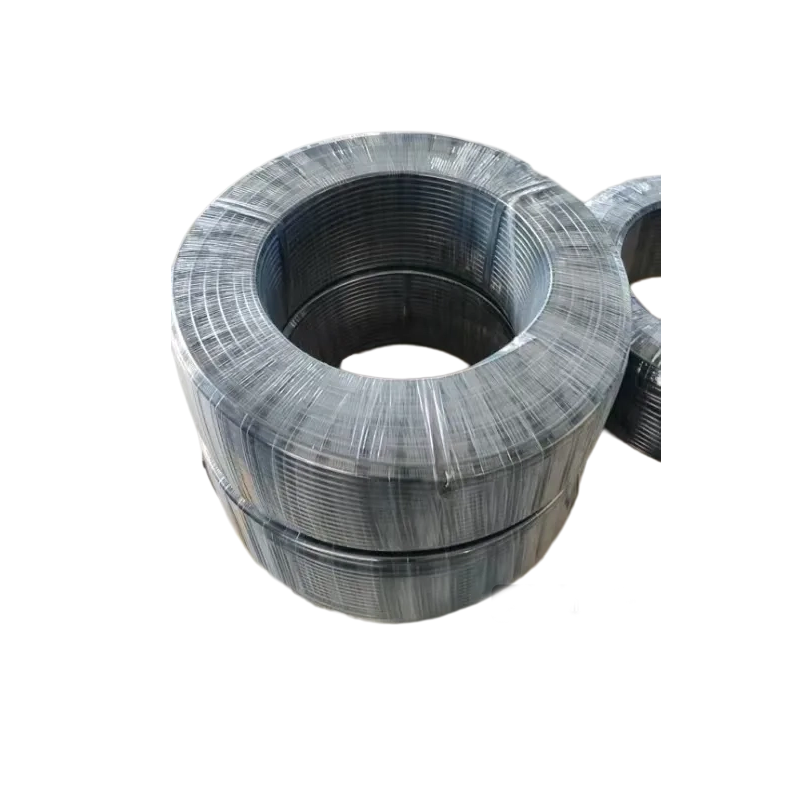

Drip Pipe - PE pipe

PE pipes use high-quality polyethylene as raw materials and play a key role in agricultural irrigation. In water-saving irrigation systems, they are widely used in various drip irrigation systems and sprinkler irrigation systems. They are often connected with capillary tubes, branch pipes and terminal sprinklers. Their excellent performance can ensure the efficient use of water resources and provide accurate and continuous water supply for crops.

*Easy to cut, connect and place without digging
*Flexible for easy installation
*Can be staked and covered with mulch
Diameter16mm/18mm/20mm/25mm/32mm/63mm/75mm
MaterialPE
ColorAny colors can be done
SeriesIrrigation
Detail

Product Features

  • Adding anti-UV and anti-aging agents makes it more durable

  • The product is non-toxic and odorless, acid-resistant, corrosion-resistant, and has low flow resistance

  • There are a variety of specifications and pressure levels to choose from

  • Mainly used in agricultural fields and greenhouse irrigation


Specifications


Diameter(mm)

Thickness( mm )

Working pressure (Bar)

16

1.0±0.3,1.2±0.3,1.6±0.4

2.5,4.5

20

1.2±0.3,1.5±0.4,2.0±0.4

2.5,4.5

25

1.4±0.4,1.9±0.4,2.3±0.5

2.5,4.5

32

1.6±0.4,2.4±0.5,2.9±0.5

2.5,4.5

63

3.0±0.5,4.7±0.7,5.8±0.8

2.5,4.5

75

3.6±0.6,5.5±0.8,5.9±0.8

2.5,4.5

Note: Customizable
