Pressure-compensating drip irrigation pipe is a drip irrigation belt with built-in pressure-compensating drippers. Its unique design
makes it perform well in rugged terrain such as hills and mountains. This drip irrigation pipe can effectively solve the problem of
uneven pressure caused by terrain drop, ensure that each dripper can evenly discharge water, and provide a stable water supply
for crops. Whether it is planting fruit trees, vegetables or other crops, pressure-compensating drip irrigation pipes can play an important
role, improve irrigation efficiency, save water resources, and are an ideal choice for agricultural irrigation.
Product Features

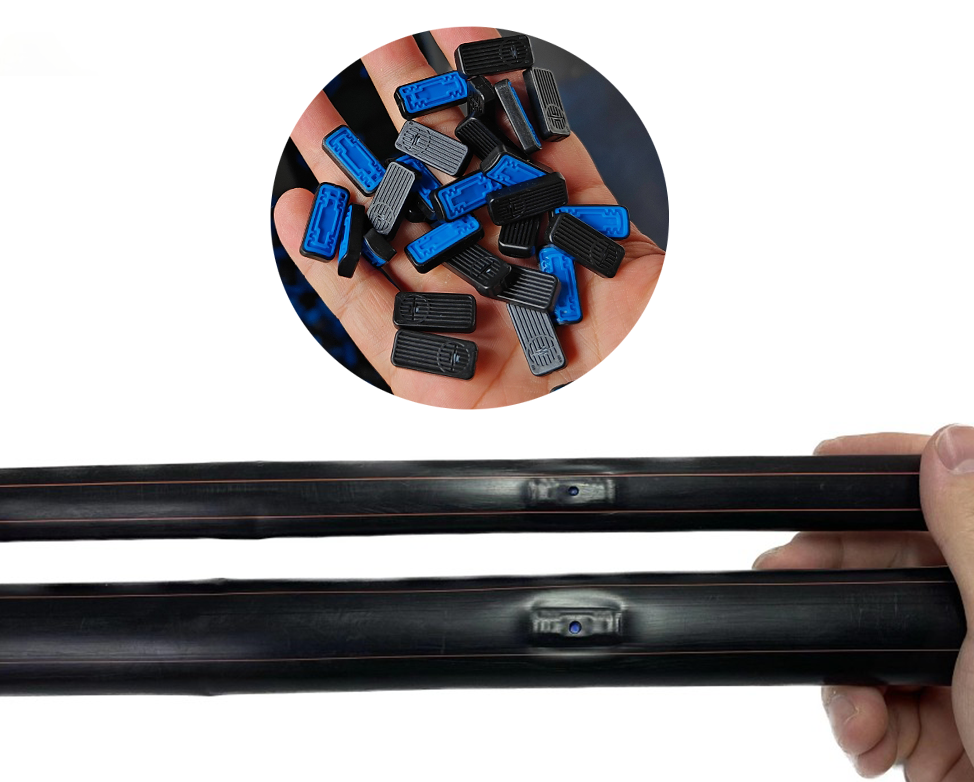

The pressure-compensating drip irrigation pipe is extruded once, with built-in pressure-compensating drippers. There is no need to
install drippers manually, and the laying construction is convenient and labor-saving
The pressure-compensating dripper has a labyrinth flow channel, a scientific structure, stable silicone sheet quality, and good pressure
compensation effect
The inner dripper has a small manufacturing deviation, uniform water flow, and has an anti-backflow function to prevent debris from being
sucked into the flow channel. It can be used for underground irrigation
The pressure-compensating drip irrigation pipe is made of high-quality materials, corrosion-resistant, anti-aging, and durable
Specifications
Diameter(mm) | Thickness( mm ) | Spacing(cm) | Flow rate(L/H) | Working pressure (Bar) | Package/roll (m) |
16 | 0.4mm | 20/30/40/50 | 1.0/1.6/2.0 | 1.0-1.8 | 700/800 |
16 | 0.6mm | 30/40/50/100 | 1.0/1.6/2.0 | 1.0-2.0 | 500 |
16 | 0.8mm | 30/40/50 | 1.0/1.6/2.0 | 1.0-2.2 | 500 |
16 | 1.0mm | 30/40/50 | 1.0/1.6/2.0 | 1.0-2.5 | 500 |
Note: Customizable |
